Road Design · September 2024
Project C

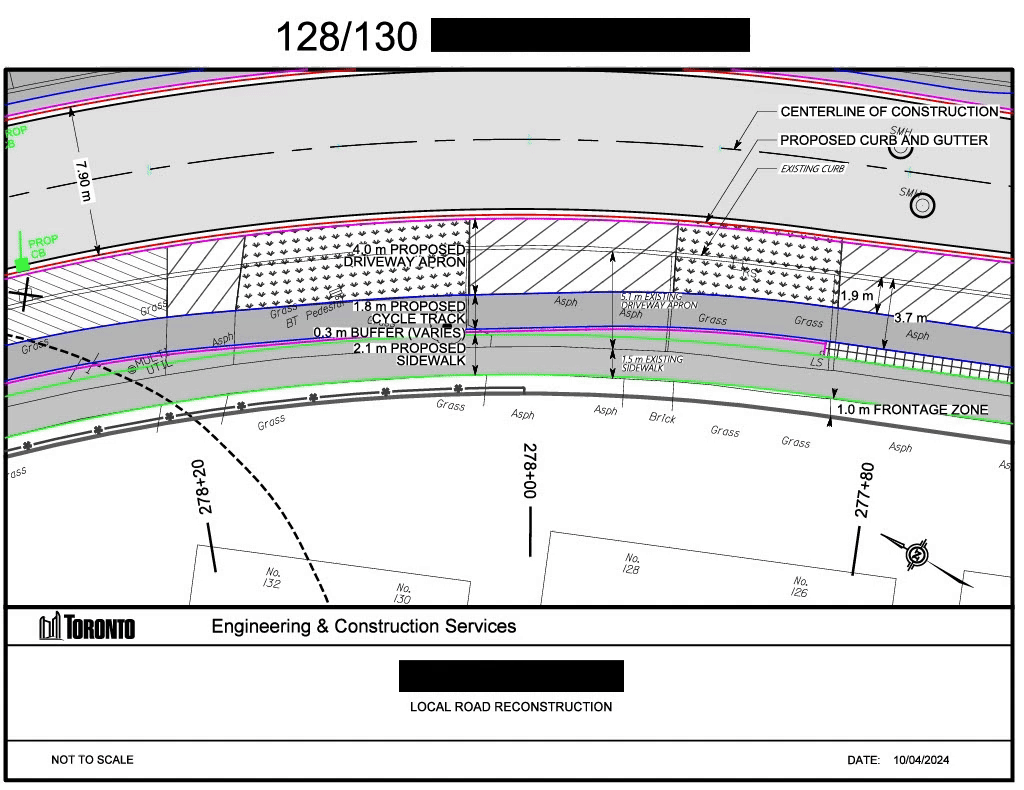

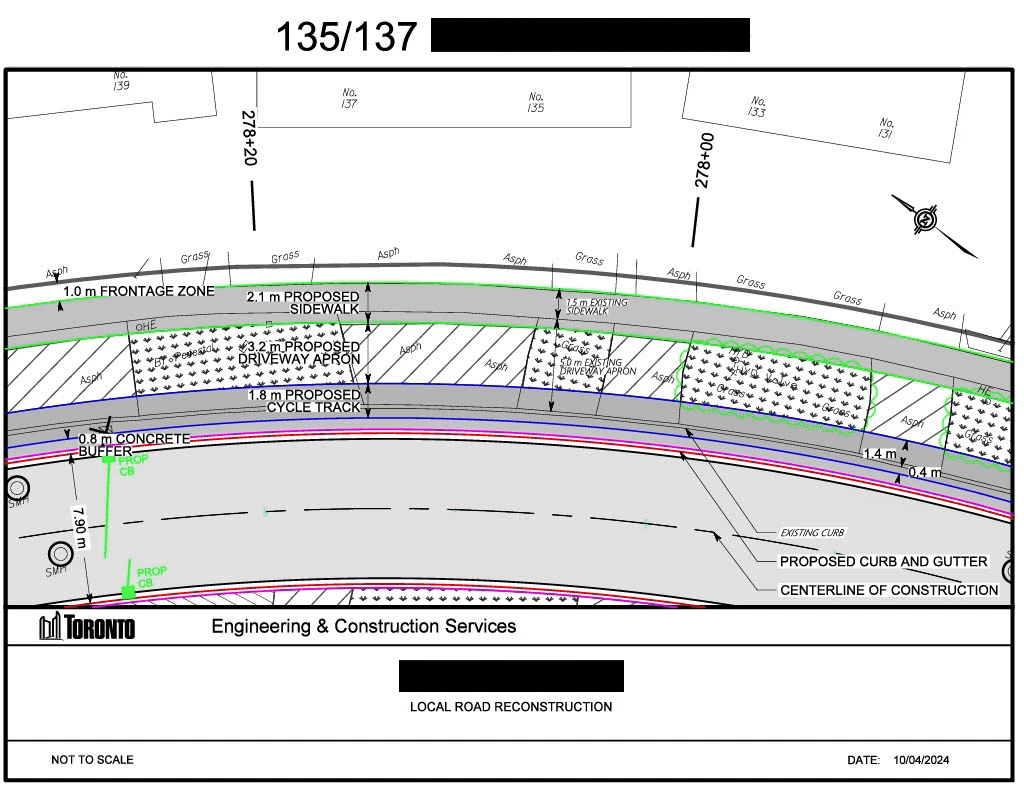

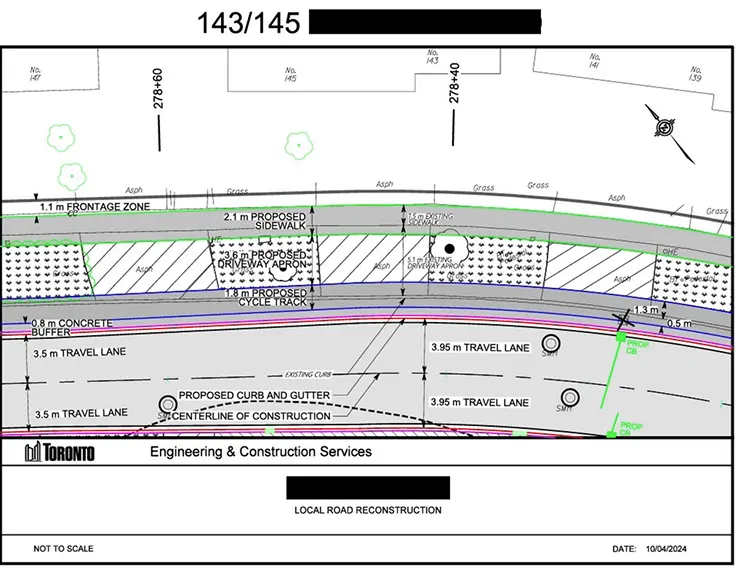

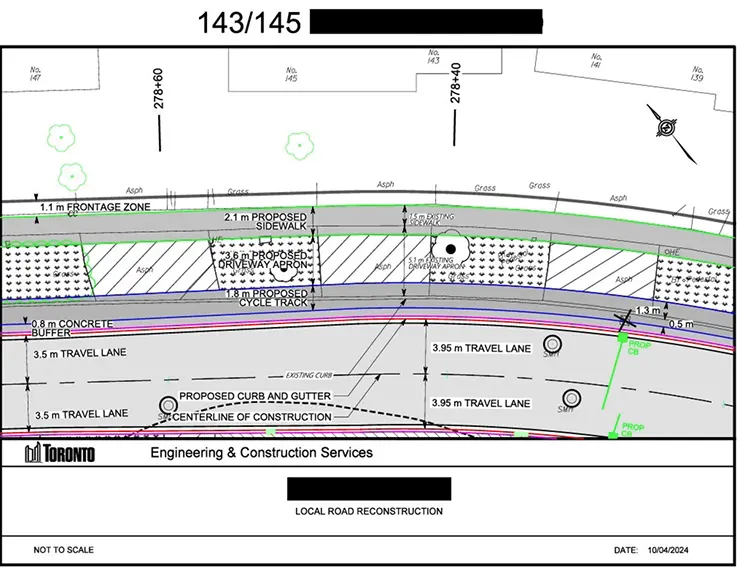

25 consolidated drawing sheets documenting bike lane installations and their effect on adjacent sidewalks and driveways.
1+00
This set of drawings works through bike lane installations and everything nearby they touch, sidewalk aprons, driveway modifications, and buffer widths, condensed down to 25 sheets from an original 100 by grouping similar configurations together instead of documenting every location individually. The sheets were built for councillor presentations and public consultations, so precision mattered as much as clarity: exact dimensions and adjustments needed to fit bike lanes in while keeping accessibility intact and disruption to residents low. Designed September 2024 to October 2024.
